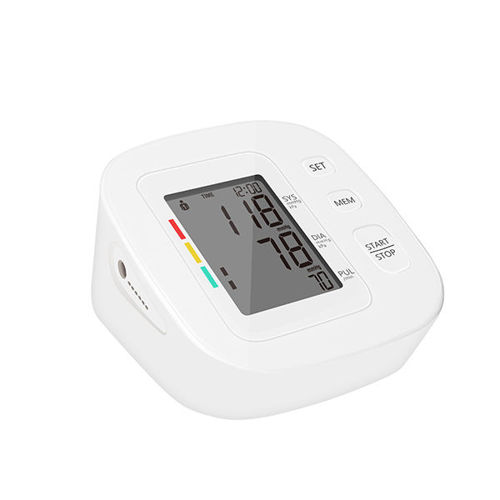

YB-802 Digital Blood Pressure Monitor
HAD (Heart pulse Arrhythmia Detection) Average for Last 3 measurements 20 memory x 2 users Low voltage warning Backlight function optional The power converter Intelligent pressure Send Inquiry
Description
A digital blood pressure monitor is a compact device used to measure and display blood pressure readings accurately. It provides convenient and reliable monitoring for individuals to track and manage their blood pressure levels.
| Measurement Procedure: | Oscillometric , corresponding to Korotkoff method: Phase I : systolic , Phase |
| V : diastolic | |
| Display: | Digital display |
| Measuring range: | Pressure: 30 to 280 mmHg (in 1 mmHg increment) |
| Pulse: 40 to 199 beat/minute | |
| Static accuracy: | Pressure: ±3mmHg / Pulse: ±5% of reading |
| Measuring resolution : | 1mmHg |
| Inflation: | Automatic inflation by internal pump |
| Decompression: | Constant exhaust valve system |
| Power source: | 4-size “AA” alkaline Batteries |
| Operation temperature: | 5~40°C/41~104°F |
| Operation humidity: | 15%~80%RH maximum |
| Storage temperature: | -20~+55°CM~+131°F |
| Storage humidity: | 10%~90%RH maximum |
| Cuff pressure display range: | 0~295mmHg/0~38.7kPa |
| Safety classifications: | Type BF Applied part device |
| Mode of operation: | Continuous operation |
| Protection against ingress of water: | IPX0 |
| Accessories: | M size Cuff, 4 “AA” batteries, instruction manual |
| LCD size: | 64.5*45.5mm |
| Unit size: | 132*102*81 mm |
| Weight: | About 455g (battery and cuff included) |
